High-efficiency steel press radiators engineered for optimized cooling, stable heat dissipation and long-lasting durability. Designed to meet global transformer performance standards with precision manufacturing.

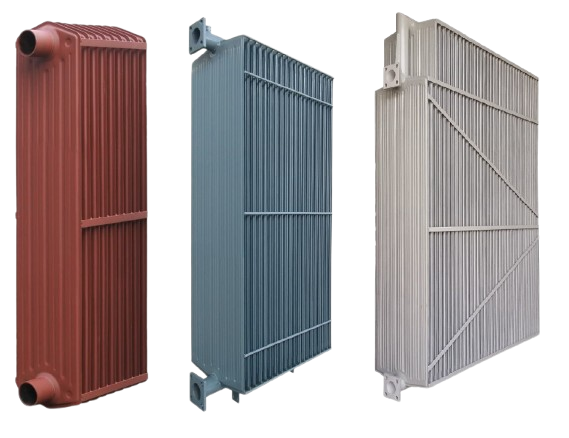

Our Steel Press Radiator Division produces a complete range of radiator panels designed for efficient transformer cooling. Every radiator undergoes strict quality tests ensuring uniformity, strength and leakage-free operation.
Manufactured using advanced hydraulic press systems, precision welding, shot-blasting and powder coating for superior finish and maximum life span.
Explore our engineered radiator range designed to support transformer thermal stability and performance.

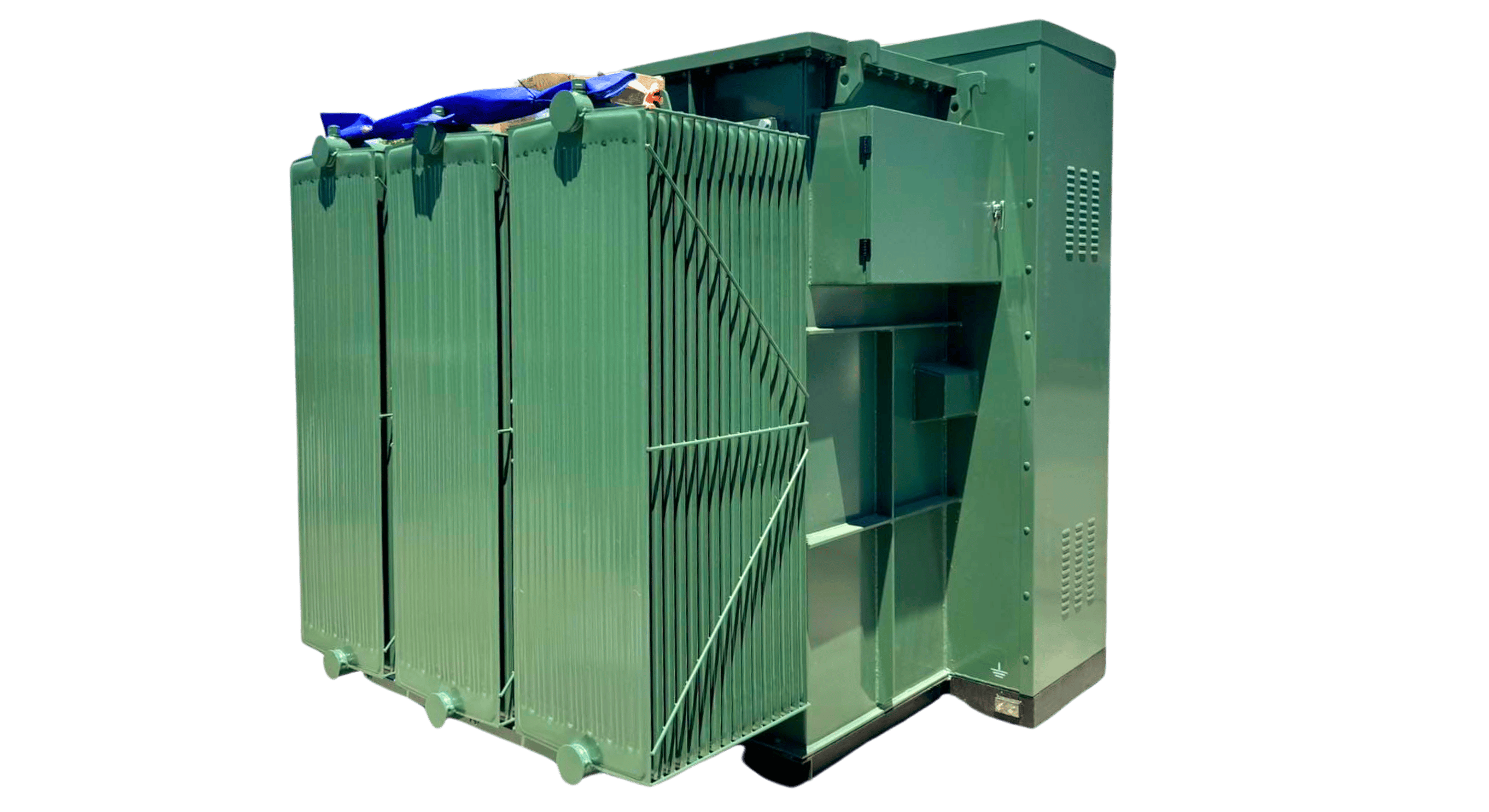

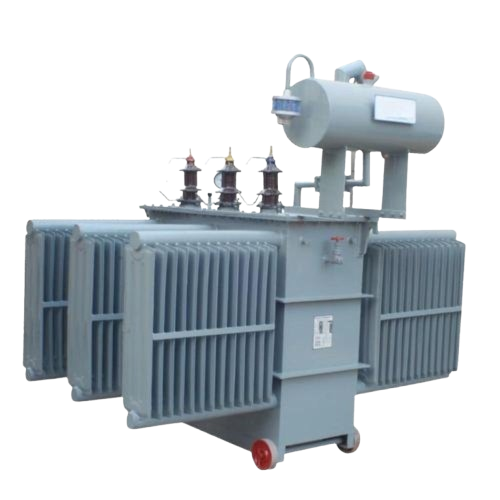

Press steel radiators are used in both Power Transformers and Distribution Transformers.

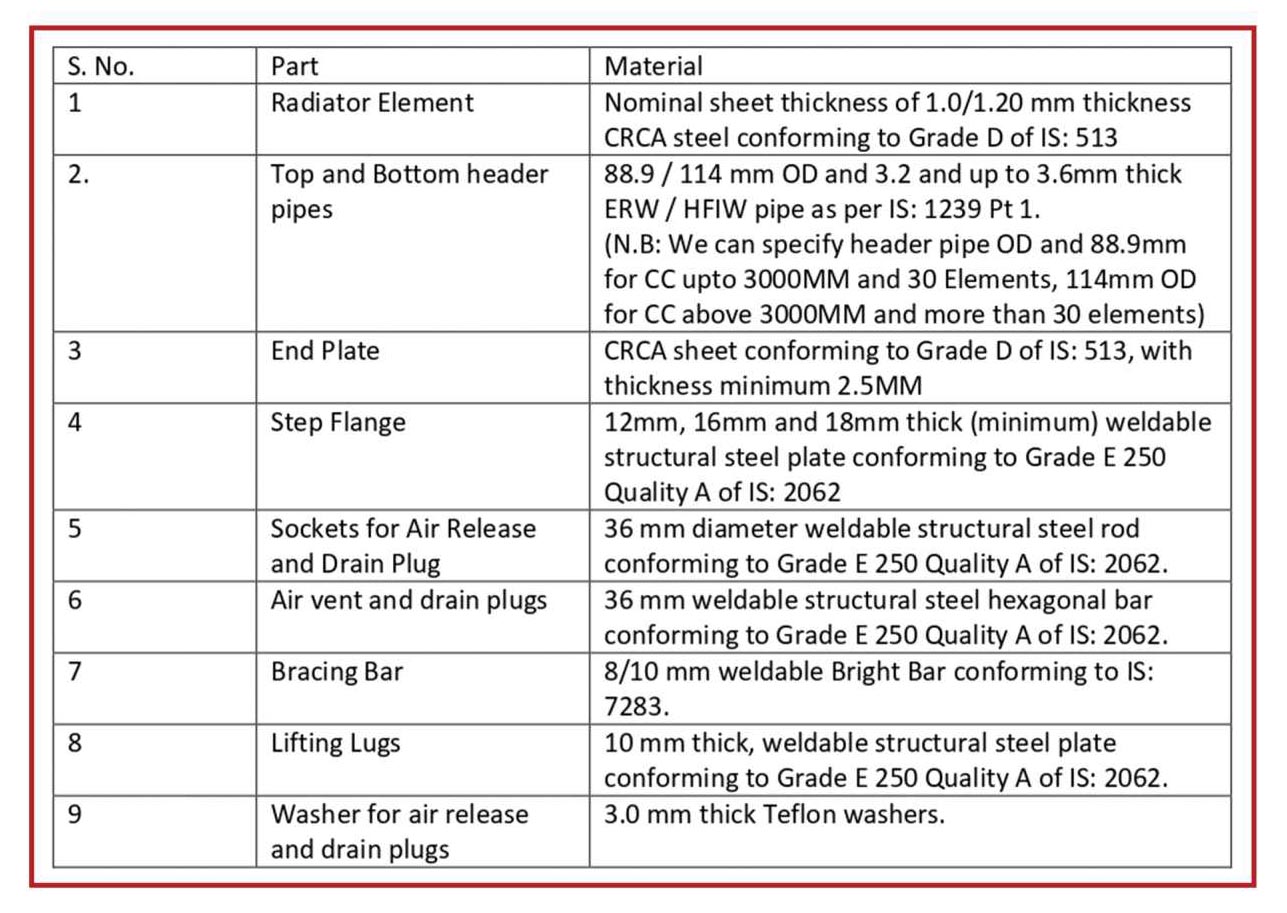

The cooling sections are made from 1.0MM and 1.2MM thick CRCA steel strips of drawing quality,
in widths of 226MM, 300MM, 380MM and 520MM. Each radiator is built from multiple sections spaced

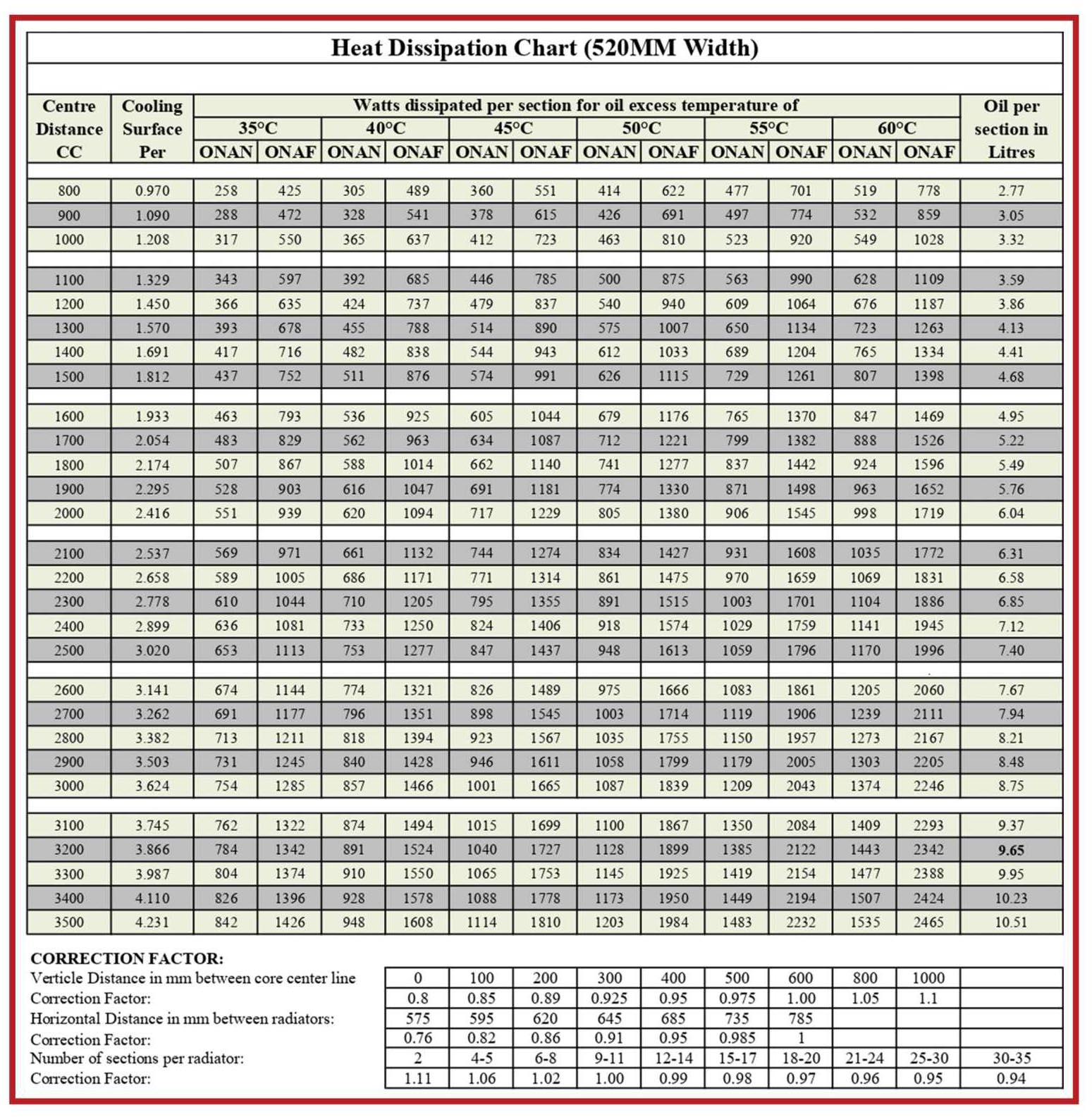

at 50MM, 60MM and 65MM centers. The number of sections is determined by transformer manufacturers
based on heat dissipation requirements and allowable maximum oil temperature rise.
Radiators typically include 3 to 40 sections, and larger radiators can be produced based on
specific design requirements.
